Description

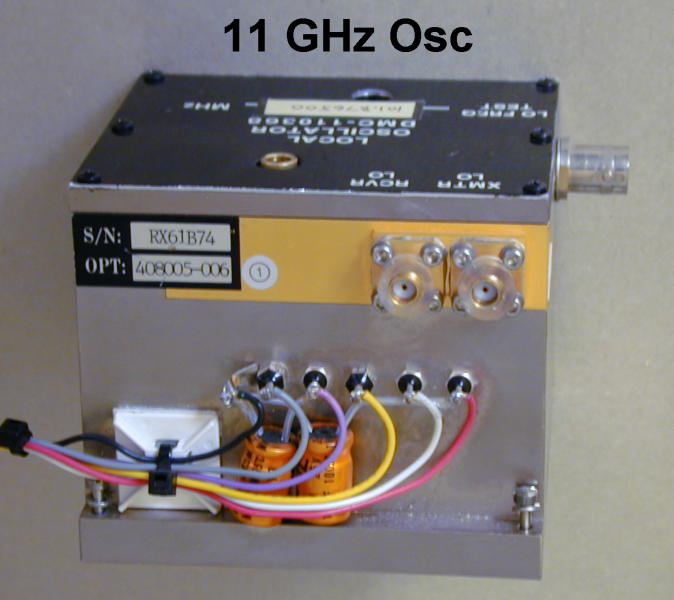

Oscillator generates a fixed frequency determined by the internal ovenized crystal oscillator. Normal multiplication from the crystal reference is x108, so this example with a 105.060096 MHz crystal would produce an output frequency of 11.346490 GHz.
Details of circuits and operation are contained in this zipfile: Fixed_Osc.zip
Pictures
